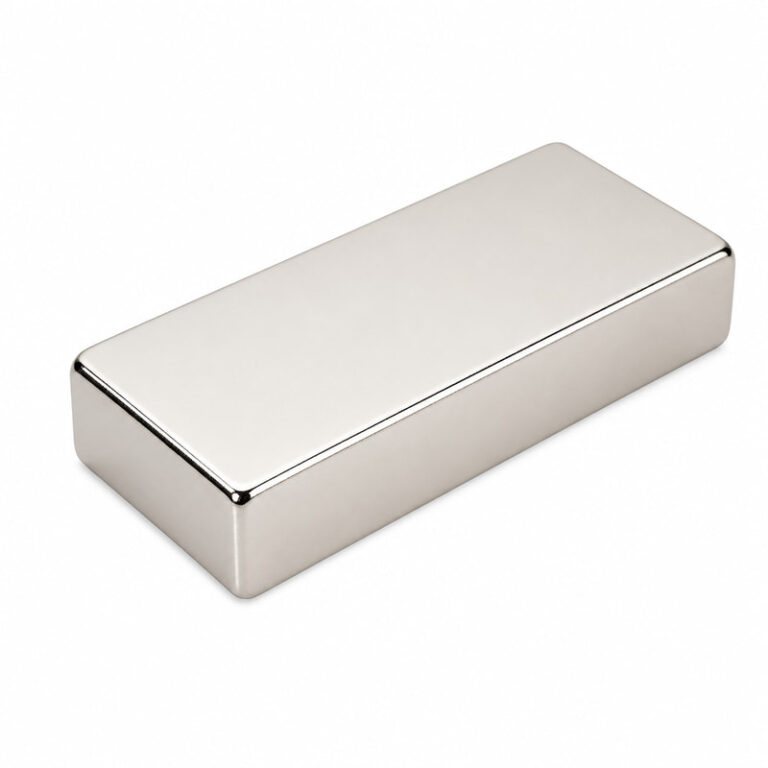

Custom N38 Magnets Manufacturer in China
N38 Magnet is a high-performance neodymium iron boron (NdFeB) magnet grade that offers an excellent balance between magnetic strength, cost efficiency, and manufacturing flexibility. Compared with lower grades such as N35 and N37, N38 magnets provide stronger magnetic performance while remaining a cost-effective solution for a wide range of industrial and commercial applications.
We manufacture custom N38 neodymium magnets in various shapes, sizes, coatings, and magnetization directions to meet the requirements of global OEMs, distributors, and industrial equipment manufacturers.
What Is an N38 Magnet?
N38 refers to the magnetic grade of a neodymium magnet. The number “38” indicates the magnet’s maximum energy product (BHmax), approximately 38 MGOe (Mega Gauss Oersteds).
N38 magnets belong to the permanent rare earth magnet family and are known for their:
- Strong magnetic force
- Compact size
- High energy density
- Excellent durability
- Long service life
- Cost-effective performance
These characteristics make N38 magnets ideal for applications requiring stronger holding force than N35 magnets while maintaining reasonable production costs.
N38 Magnet Specifications
| Property | N38 Magnet |
|---|---|
| Material | NdFeB (Neodymium Iron Boron) |
| Grade | N38 |
| Br (Remanence) | 12.20 – 12.60 kGs |
| Hcb (Coercive Force) | ≥ 11.0 kOe |
| Hcj (Intrinsic Coercivity) | ≥ 12.0 kOe |
| BHmax | 37 – 39 MGOe |
| Density | 7.4 – 7.6 g/cm³ |
| Working Temperature | Up to 80°C (176°F) |
| Curie Temperature | Approx. 310°C |
| Manufacturing Process | Sintered NdFeB |
* Custom magnetic properties and temperature-resistant grades are available upon request.
Key Features of N38 Magnets
Strong Performance
N38 magnets deliver higher magnetic strength than N35 and N37 grades, making them suitable for applications where space is limited but strong holding force is required.
Cost-Effective Solution
Compared with higher grades such as N42, N45, N48, or N52, N38 magnets offer an economical balance between performance and cost.
Excellent Corrosion Resistance
With proper surface coatings, N38 magnets can withstand harsh operating environments and maintain long-term reliability.
Custom Manufacturing Available
We produce N38 magnets according to customer drawings, specifications, and application requirements.
Long Service Life
N38 magnets maintain stable magnetic performance for many years under normal operating conditions.
Available N38 Magnet Shapes
We manufacture custom N38 magnets in virtually any geometry, including:
N38 Disc Magnets
Ideal for sensors, mounting systems, and electronic devices.
N38 Ring Magnets
Widely used in motors, speakers, and magnetic couplings.
N38 Block Magnets
Commonly used in industrial automation and magnetic assemblies.
N38 Arc Magnets
Designed for electric motors, generators, and rotor systems.
N38 Countersunk Magnets
Suitable for mechanical fastening and hidden mounting applications.
N38 Bar Magnets
Used in educational, industrial, and magnetic separation applications.
N38 Segment Magnets
Frequently utilized in high-efficiency motor assemblies.
Custom N38 Magnets
Manufactured according to customer drawings and technical requirements.
Surface Coating Options
To protect N38 neodymium magnets from oxidation and corrosion, we offer:
- Nickel (Ni-Cu-Ni)
- Epoxy Coating
- Zinc Coating
- Black Epoxy
- Gold Plating
- PTFE Coating
- Parylene Coating
- Everlube Coating
- Phosphate Coating
Our engineers can recommend the most suitable coating based on your operating environment.
Magnetization Options
OSENC Magnets provides customized magnetization patterns, including:
- Axial Magnetization
- Diametrical Magnetization
- Radial Magnetization
- Multi-Pole Magnetization
- Custom Magnetization Directions
Magnetization solutions can be optimized for motors, sensors, medical devices, and magnetic assemblies.
Applications of N38 Magnets
Electric Motors
N38 magnets are commonly used in:
- DC Motors
- Brushless Motors
- Servo Motors
- Stepper Motors
Industrial Automation
Applications include:
- Robotic Systems
- Pick-and-Place Equipment
- Linear Motion Systems
- Automation Sensors
Consumer Electronics
Used in:
- Speakers
- Earphones
- Magnetic Closures
- Smart Devices
Medical Equipment
Suitable for:
- Diagnostic Instruments
- Laboratory Equipment
- Magnetic Positioning Systems
Renewable Energy
Applied in:
- Wind Turbine Generators
- Permanent Magnet Generators
- Energy Conversion Systems
Magnetic Assemblies
Used in:
- Magnetic Holders
- Magnetic Separators
- Magnetic Couplings
- Holding Fixtures
Why Choose Us as N38 Magnet Supplier
Direct Magnet Manufacturer
Factory-direct pricing without intermediary costs.
Custom Manufacturing Expertise
OEM and ODM services for custom magnet projects.
Strict Quality Control
Every batch undergoes comprehensive inspection.
Fast Production
Efficient manufacturing processes ensure shorter lead times.
Global Export Experience
Supplying N38 magnets to customers across global area.

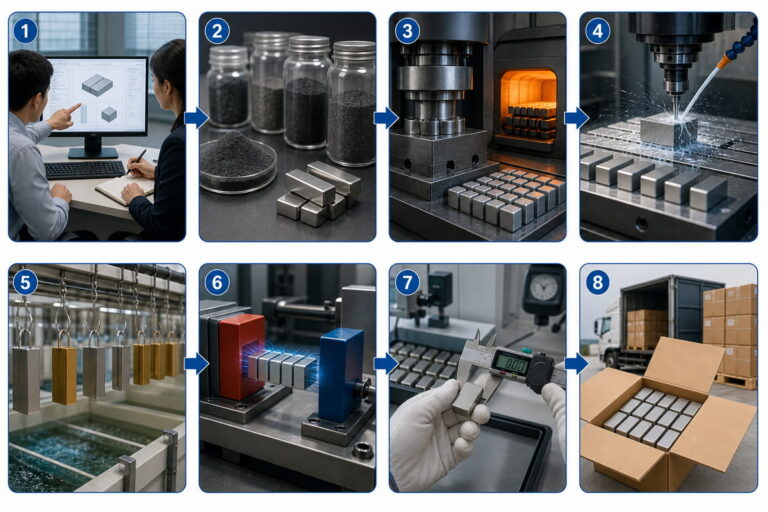

Custom N38 Magnet Manufacturing Process
- Requirement Analysis
- Material Preparation
- Pressing & Sintering
- Precision Machining
- Surface Coating
- Magnetization
- Quality Inspection
- Packaging & Delivery
Every production step follows strict quality standards to ensure consistent magnetic performance.
Frequently Asked Questions
Yes. N38 magnets provide higher magnetic energy and stronger holding force than N35 magnets.
Standard N38 magnets can operate continuously at temperatures up to 80°C (176°F).
Yes. We manufacture custom shapes, dimensions, coatings, tolerances, and magnetization directions according to customer specifications.
Absolutely. N38 magnets are widely used in motors, generators, and automation equipment due to their excellent magnetic performance and cost efficiency.
Epoxy coating and specialized corrosion-resistant coatings are commonly recommended for outdoor and humid environments.
Request a Quote
OSENC Magnets supplies high-quality custom N38 neodymium magnets for industrial, commercial, and OEM applications worldwide. Contact our engineering team today for technical support, design assistance, samples, and competitive quotations.
