Wind Turbine Generator Magnets for Renewable Energy Systems
Osenc Magnets manufactures high-performance neodymium magnets for wind turbine generators, permanent magnet generator systems, and renewable energy applications requiring strong magnetic fields, thermal stability, and long-term reliability.
Our sintered NdFeB magnets are engineered for high-efficiency wind power systems, compact generator designs, and demanding outdoor operating environments.
Neodymium Magnets for Wind Turbine Generators
Permanent magnet generators used in wind turbines rely on high-performance NdFeB magnets to convert rotational energy into electrical energy with improved efficiency and reduced mechanical complexity.
Neodymium magnets are widely used in direct-drive wind turbine generators and high-efficiency renewable energy systems because of their strong magnetic flux density and compact magnetic design capabilities.
Advantages of NdFeB Magnets in Wind Turbines
High Magnetic Energy Density
NdFeB magnets provide strong magnetic fields that support compact and efficient generator designs.
Improved Generator Efficiency
Permanent magnet generator systems reduce electrical losses and improve energy conversion efficiency.
Compact Generator Structure
High-performance magnets enable smaller generator dimensions while maintaining high output capacity.
Reduced Maintenance Requirements
Direct-drive permanent magnet generators reduce the need for gearboxes and additional excitation systems.
Long-Term Performance Stability
Properly engineered NdFeB magnets provide stable magnetic performance over extended operating periods.
Common Magnet Types for Wind Turbines
Arc Magnets
Arc magnets are commonly used in permanent magnet rotor assemblies for wind turbine generators.
Features
- Curved Rotor Geometry
- Radial Magnetization
- High Flux Density
- Tight Dimensional Tolerance
Segment Magnets
Segment magnets are designed for optimized magnetic field distribution within generator systems.
Features
- Multi-Pole Configurations
- Rotor Efficiency Optimization
- Stable Magnetic Performance
Block Magnets
Block magnets may be used in specialized renewable energy and magnetic assembly systems.
Features
- Strong Magnetic Force
- Custom Dimensions
- High Energy Density
Permanent Magnet Generator Systems
Direct-Drive Wind Turbine Generators
Permanent magnet direct-drive systems eliminate the need for gearbox assemblies, improving overall system efficiency and reducing maintenance requirements.
Generator Benefits
- Reduced Mechanical Losses
- Higher System Efficiency
- Lower Maintenance Costs
- Improved Reliability
- Compact Generator Design
Typical Applications
- Offshore Wind Turbines
- Onshore Wind Turbines
- Small Wind Power Systems
- Renewable Energy Equipment
Magnetic Performance in Generator Systems
Strong magnetic flux density is essential for efficient power generation in permanent magnet generator systems.
Simplified Magnetic Force Relationship
Key Engineering Factors
- Magnetic Flux Density
- Rotor Geometry
- Pole Configuration
- Air Gap Design
- Thermal Stability
High Temperature Magnet Grades
Wind turbine generator magnets may operate under fluctuating temperatures and continuous mechanical loading.
Osenc Magnets supplies high-temperature NdFeB grades designed for thermal stability and demagnetization resistance.
Temperature Grade Comparison
| Grade Type | Max Operating Temperature |
|---|---|
| H | 120°C |
| SH | 150°C |
| UH | 180°C |
| EH | 200°C |
Performance Advantages
- High Coercivity
- Thermal Stability
- Long-Term Magnetic Retention
- Resistance to Demagnetization
Corrosion Resistance for Outdoor Environments
Wind turbine systems are exposed to:
- Humidity
- Salt Spray
- Rain
- Temperature Cycling
- Harsh Outdoor Conditions
Protective coatings are critical for long-term magnet durability.
Common Coating Options
| Coating | Corrosion Resistance | Typical Application |
|---|---|---|
| Epoxy | High | Outdoor Wind Systems |
| PTFE | High | Harsh Environments |
| NiCuNi | Medium | Standard Industrial Use |
Coating Benefits
- Corrosion Protection
- Environmental Durability
- Moisture Resistance
- Surface Stability
Magnetization Methods for Generator Systems
Radial Magnetization
Radial magnetization is widely used in permanent magnet rotor systems.
Multipole Magnetization
Multipole magnetization improves magnetic field distribution and generator efficiency.
Precision Magnetization
Osenc Magnets supports custom magnetization tooling and multi-pole configurations for generator applications.
Precision Manufacturing for Wind Turbine Magnets
Osenc Magnets provides precision machining and inspection for renewable energy magnet manufacturing.
Manufacturing Capabilities
- Arc Magnet Machining
- Segment Magnet Processing
- Tight Tolerance Grinding
- Multi-Pole Magnetization
- Surface Coating
- Batch Traceability
Tolerance Capability
Precision tolerances up to ±0.03mm depending on geometry and application requirements.
Quality Inspection
- Magnetic Flux Testing
- Dimensional Inspection
- Salt Spray Testing
- Coating Thickness Inspection
- Thermal Stability Verification
Magnetic Properties
Typical Magnetic Properties
| Property | Typical Range |
|---|---|
| Remanence (Br) | 1.17–1.45T |
| Coercivity (Hcj) | 955–2388kA/m |
| Maximum Energy Product (BHmax) | 33–53MGOe |
Common Renewable Energy Grades
- N42SH
- N48SH
- N50UH
- N52UH
Why Renewable Energy Systems Use NdFeB Magnets
High Efficiency
Permanent magnet systems improve energy conversion performance.
Compact Generator Design
High magnetic strength supports smaller and lighter generator systems.
Reduced Mechanical Complexity
Direct-drive systems reduce the need for complex gearbox assemblies.
Long Service Life
Properly engineered NdFeB magnets maintain stable magnetic performance over time.
OEM & Custom Wind Turbine Magnet Manufacturing
Osenc Magnets supports OEM and custom manufacturing projects for renewable energy systems.
Customization Options
Custom Shapes
- Arc Magnets
- Segment Magnets
- Block Magnets
- Custom Rotor Geometries
Custom Magnetization
- Radial
- Multipole
- Axial

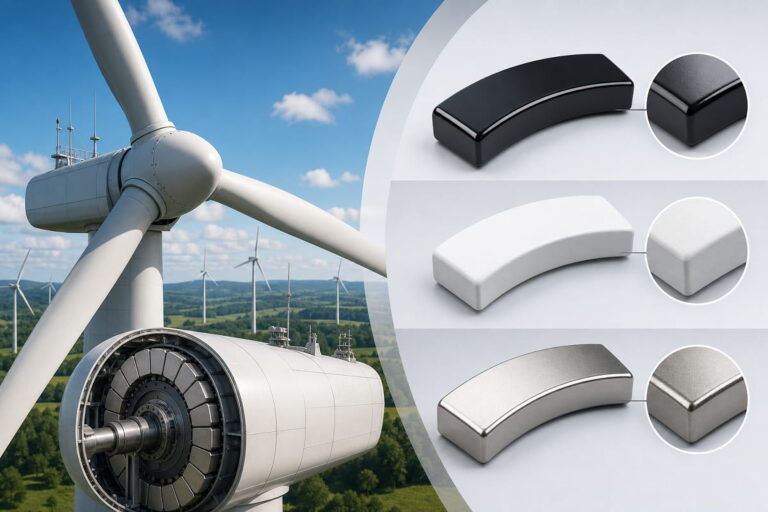

Custom Coatings
- Epoxy
- PTFE
- NiCuNi
Engineering Support
- Generator Rotor Optimization
- Magnetic Circuit Design
- Prototype Development
- OEM Production Support
Related Technical Resources
Magnet Grades Guide
Compare high-temperature NdFeB grades for EV applications.
Magnetization Direction Guide
Learn about radial and multipole magnetization methods.
Pull Force Guide
Understand magnetic force and magnetic circuit considerations.
Magnet Coating Guide
Compare coating performance in automotive environments.
Temperature Resistance Guide
Select appropriate grades for high-temperature motor systems.
Frequently Asked Questions
NdFeB permanent magnets are commonly used in permanent magnet generator systems.
They provide strong magnetic fields, compact generator design, and improved energy conversion efficiency.
Epoxy and PTFE coatings are commonly selected for outdoor corrosion resistance.
Radial and multipole magnetization are commonly used in permanent magnet rotor assemblies.
Yes. Osenc Magnets supports custom shapes, coatings, grades, tolerances, and magnetization configurations.
H, SH, UH, and EH grades are commonly used for elevated operating temperatures.
Custom Magnets for Wind Turbine Generator Systems
Request engineering consultation, prototype support, or custom manufacturing quotations for renewable energy applications.
