Neodymium Magnet Magnetization Process
Osenc Magnets provides custom magnetization solutions for sintered NdFeB magnets including axial, diametrical, radial, and multipole magnetization for industrial applications such as EV motors, robotics, sensors, automation systems, medical devices, and magnetic assemblies.
Understanding magnetization direction is critical for magnetic circuit design, magnetic field distribution, assembly compatibility, and overall system performance.
What Is Magnetization Direction?
Magnetic Pole Orientation in NdFeB Magnets
Magnetization direction refers to the orientation of the north and south magnetic poles within a permanent magnet.
The magnetization configuration directly affects:
- Magnetic Field Distribution
- Pull Force
- Magnetic Flux Density
- Assembly Performance
- Rotational Behavior
- Sensor Accuracy
Why Magnetization Direction Is Important
Correct magnetization selection is essential for:
- Motor Performance
- Magnetic Couplings
- Sensor Systems
- Automation Equipment
- Magnetic Holding Assemblies
Common Magnetization Directions
Osenc Magnets supports multiple magnetization configurations based on application requirements and magnetic circuit design.
Main Magnetization Types
Axial Magnetization
Magnetic Poles on Flat Surfaces
Axial magnetization places the north and south poles on opposite flat surfaces of the magnet.
Typical Structure
N↑ S↓
Common Shapes
- Disc Magnets
- Ring Magnets
- Block Magnets
Key Characteristics
- Strong Direct Pull Force
- Simple Magnetic Field Orientation
- Common Industrial Configuration
- Suitable for Holding Applications
Typical Applications
- Magnetic Holders
- Mounting Systems
- Closures
- Sensors
- General Industrial Assemblies
Advantages
- Simple Magnetization Process
- Strong Surface Field
- Cost-Effective Manufacturing
- Widely Used Design
Diametrical Magnetization
Magnetic Poles on Curved Sides
Diametrical magnetization positions the north and south poles on opposite curved sides of cylindrical or ring-shaped magnets.
Typical Structure
N←◯→S
Common Shapes
- Cylindrical Magnets
- Ring Magnets
- Tube Magnets
Key Characteristics
- Rotational Magnetic Field
- Side-Oriented Pole Structure
- Suitable for Rotating Systems
Typical Applications
- Sensors
- Magnetic Couplings
- Rotary Encoders
- Position Detection Systems
Advantages
- Ideal for Rotational Applications
- Stable Rotational Magnetic Behavior
- Compact Magnetic Circuit Design
Radial Magnetization
Radially Oriented Magnetic Poles
Radial magnetization distributes magnetic poles radially around the magnet geometry.
Typical Structure
N⇒◯⇐S
Common Shapes
- Arc Magnets
- Segment Magnets
- Ring Magnets
Key Characteristics
- Radial Magnetic Flux
- Optimized for Rotating Systems
- High-Efficiency Magnetic Circuits
Typical Applications
- Brushless DC Motors
- EV Motors
- Servo Motors
- Wind Turbine Generators
Advantages
- High Motor Efficiency
- Improved Magnetic Flux Distribution
- Optimized Torque Performance
Engineering Considerations
Radial magnetization typically requires specialized magnetization tooling and precise magnetic field control.
Multipole Magnetization
Multiple Pole Configurations
Multipole magnetization creates alternating north and south poles distributed across the magnet surface.
Example Pole Arrangement
N−S−N−S−N−S
Key Characteristics
- Multiple Magnetic Poles
- Precision Rotational Performance
- Controlled Magnetic Field Patterns
Typical Applications
- Encoders
- High-Precision Motors
- Sensor Systems
- Automation Equipment
Advantages
- Improved Position Detection
- Precision Rotational Control
- Compact Magnetic Systems
Magnetization Direction by Magnet Shape
| Magnet Shape | Common Magnetization Direction |
|---|---|
| Disc Magnet | Axial |
| Ring Magnet | Axial / Diametrical / Radial |
| Block Magnet | Axial |
| Arc Magnet | Radial |
| Tube Magnet | Diametrical |
| Segment Magnet | Radial / Multipole |
Magnetization Process
High-Intensity Pulse Magnetization
Neodymium magnets are magnetized after machining and coating using high-energy pulse magnetization equipment.
Magnetization Workflow
Machining → Coating → Fixture Positioning → Pulse Magnetization → Flux Inspection

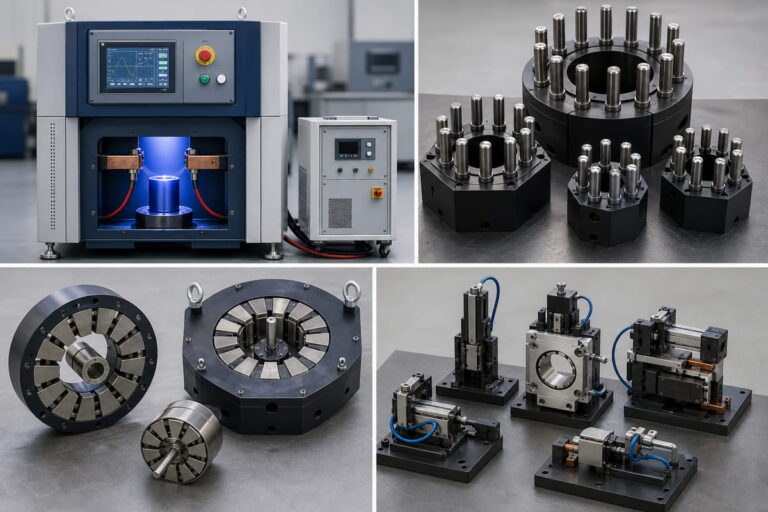

Magnetization Equipment
- Pulse Magnetizers
- Multi-Pole Fixtures
- Radial Magnetization Fixtures
- Custom Tooling Systems
Process Objectives
- Stable Pole Orientation
- Uniform Magnetic Field
- Consistent Magnetic Performance
- Accurate Pole Positioning
Magnetic Flux & Field Distribution
Effect of Magnetization Direction
Magnetization direction significantly affects magnetic field behavior and magnetic flux distribution.
Magnetic Flux Density
B=Φ/A
Where:
- ( B ) = Magnetic Flux Density
- ( Φ ) = Magnetic Flux
- ( A ) = Area
Engineering Factors
- Pole Orientation
- Air Gap
- Magnetic Circuit Geometry
- Material Grade
- Magnet Shape
Pull Force & Magnetization Direction
Relationship Between Pole Orientation & Force
Different magnetization directions influence pull force performance and magnetic interaction behavior.
Axial Magnetization
Typically produces strong direct pull force on flat contact surfaces.
Diametrical Magnetization
Provides rotational magnetic interaction rather than direct holding force.
Radial Magnetization
Optimized for rotating magnetic fields in motor systems.
Custom Magnetization Solutions
Application-Specific Magnetization
Osenc Magnets supports custom magnetization solutions based on:
- CAD Drawings
- Motor Design
- Sensor Requirements
- Magnetic Circuit Design
- Pole Configuration Requirements
Custom Magnetization Options
- Axial
- Diametrical
- Radial
- Multipole
- Skewed Pole Designs
- Custom Pole Counts
Quality Inspection & Flux Testing
Magnetic Pole Verification
Osenc Magnets performs inspection procedures to verify magnetic orientation and magnetic field consistency.
Inspection Capabilities
Flux Density Testing
Measurement of magnetic field strength.
Pole Orientation Inspection
Verification of magnetic pole positioning.
Magnetic Field Mapping
Analysis of magnetic field distribution.
Gauss Meter Testing
Measurement of surface magnetic flux density.
Quality Objectives
- Stable Pole Orientation
- Uniform Magnetic Performance
- Accurate Pole Positioning
- Consistent Magnetic Flux
Frequently Asked Questions
Magnetization direction refers to the orientation of the north and south magnetic poles within a permanent magnet.
Axial magnetization places magnetic poles on opposite flat surfaces of the magnet.
Diametrical magnetization positions magnetic poles on opposite curved sides of cylindrical magnets.
Radial magnetization is commonly used in brushless motors, EV motors, and rotating magnetic systems.
Multipole magnetization creates multiple alternating north and south poles across the magnet surface.
Yes. Osenc Magnets supports custom pole configurations and application-specific magnetization solutions.
